Description

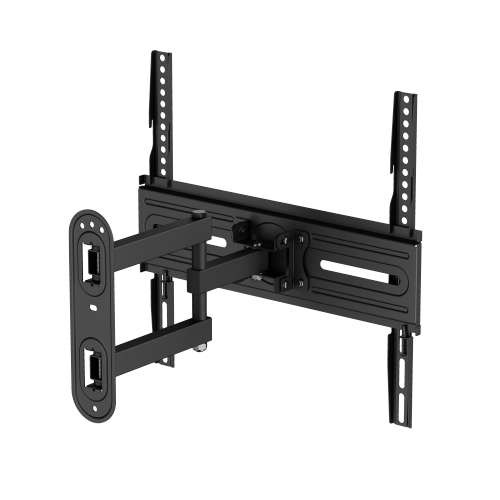

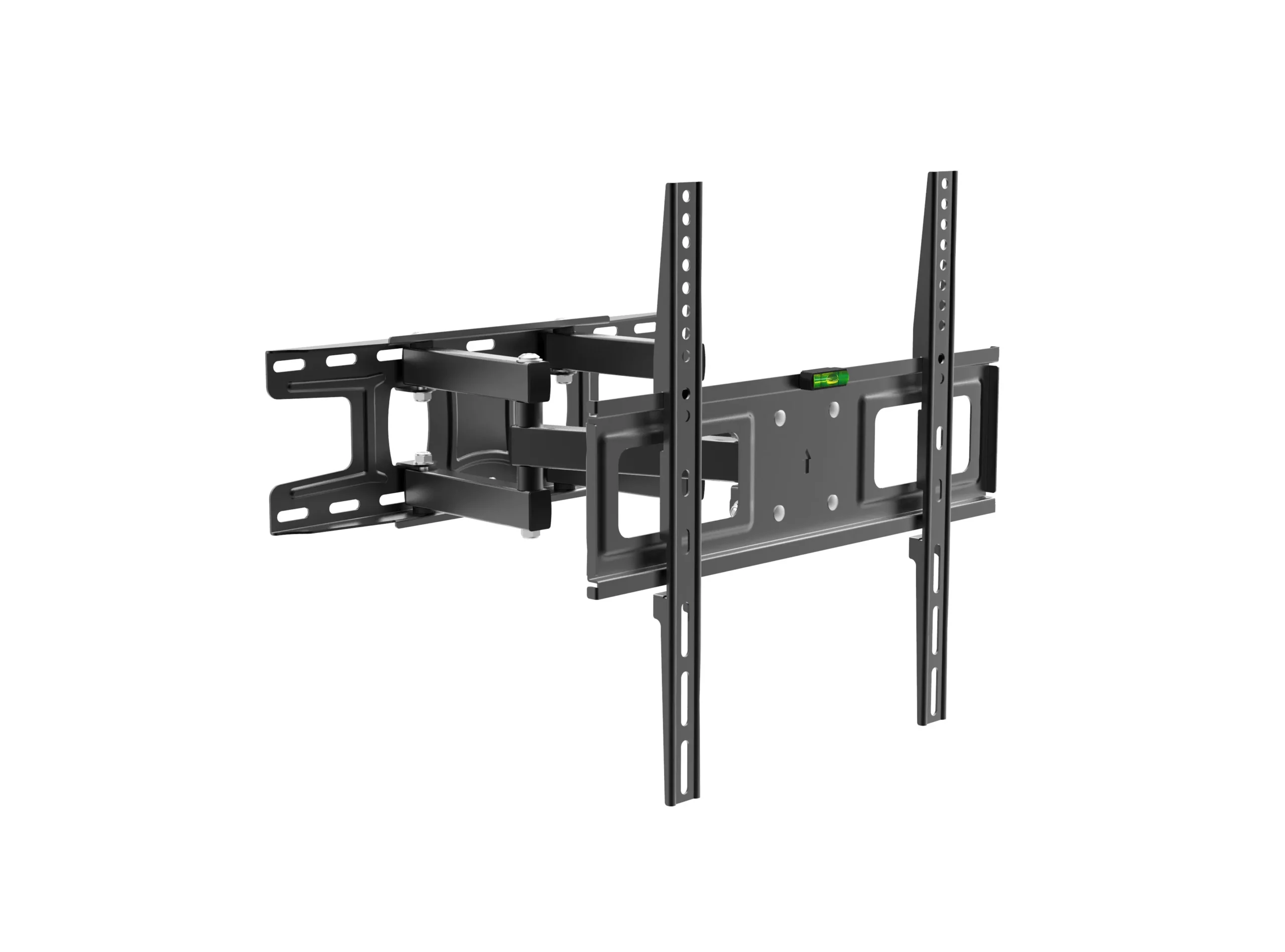

FL – 554 Super Economy Full-Motion TV Wall Mount maximizes viewing comfort with swivel and tilt functions by making every seat the best seat. It features an easy installation process with a simple hanging mechanism and 2-level height adjustable brackets, along with leveling adjustments to maintain balance. The inclusion of hook and loop fasteners facilitates tidy cable management, creating an organized, clutter-free space.
FEATURES
-
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
-

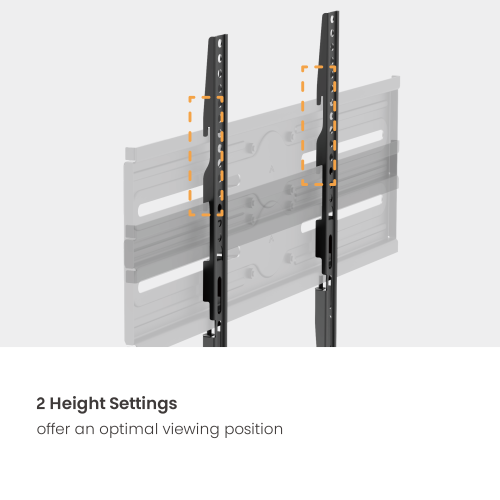

●Brackets with 2-level height adjustment
-
●Leveling adjustments: allow TV to be perfectly positioned after hanging
-
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
-

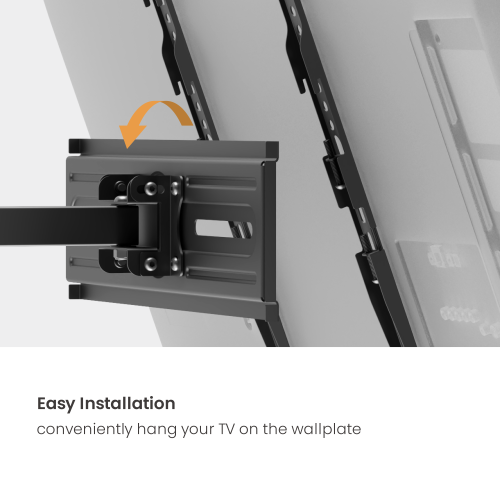

●Picture Hanging Style: for a quick and easy installation
-

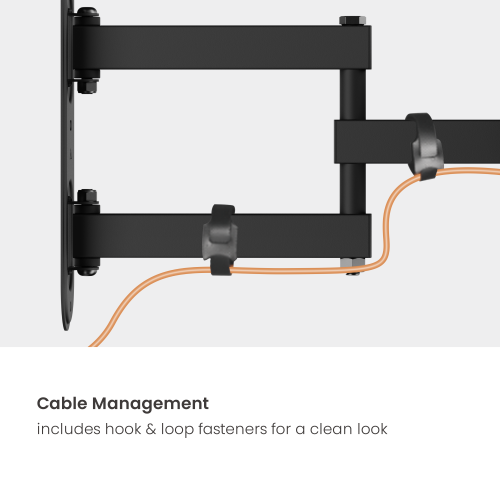

●Cable Management: keeps everything organized
SPECIFICATIONS
| Product Category: |
Full-motion TV Wall Mount |
| Rank: |
Economy |
| Material: |
Steel,Plastic |
| Metal Sheet Thickness: |
Bracket Arm THK=1.2mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet (Bracket Arm THK=0.047″ cold-rolled sheet,VESA Panel THK=0.059″ cold-rolled sheet,Wall Plate THK=0.071″ cold-rolled sheet) |
| Pipe Size: |
30x20x1.5mm Square Steel Tube (1.2″x0.79″x0.059″ Square Steel Tube) |
| Surface Finish: |
Powder Coating |
| Color: |
Fine Texture Black |

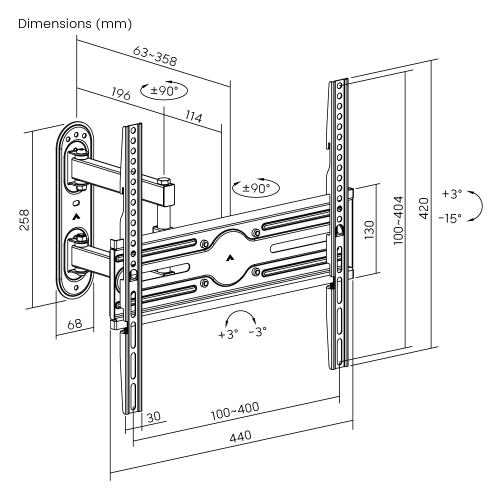

| Dimensions: |
358x440x420mm (14.1″x17.3″x16.5″) |
| Fit Screen Size: |
32″-65″ |
| Fit Curved TV: |
Yes |
| Mounting Hole Pattern: |
VESA & Universal |
| VESA Compatible: |
100×100,100×150,150×100,100×200,200×100,150×150,200×200,300×200,400×200,300×300,400×300,400×400 |
| Max. Mounting Hole: |
400×400 |
| Weight Capacity: |
35kg (77lbs) |
| Strength Tested: |
3 Times Approved |
| Profile: |
63~358mm (2.5″~14.1″) |
| Tilt Range: |
+3°~-15° |
| Swivel Range: |
+90°~-90° |
| Screen Level: |
+3°~-3° |
| Screen Freely Tilting: |
Yes |
| Installation: |
Solid Wall,Single Stud |
| Panel Type: |
Detachable Panel |
| Wall Plate Type: |
Fixed Wall Plate |
| Direction Indicator: |
Yes |
| Cable Management: |
Yes |
| Anti-theft: |
No |
| Bubble Level: |
Hook-on Bubble Level(Included in Components Package) |
| Accessory Kit Package: |
Normal/Ziplock Polybag,Compartment Polybag |
