SKU: TL-227 Category:
Product Info

Description

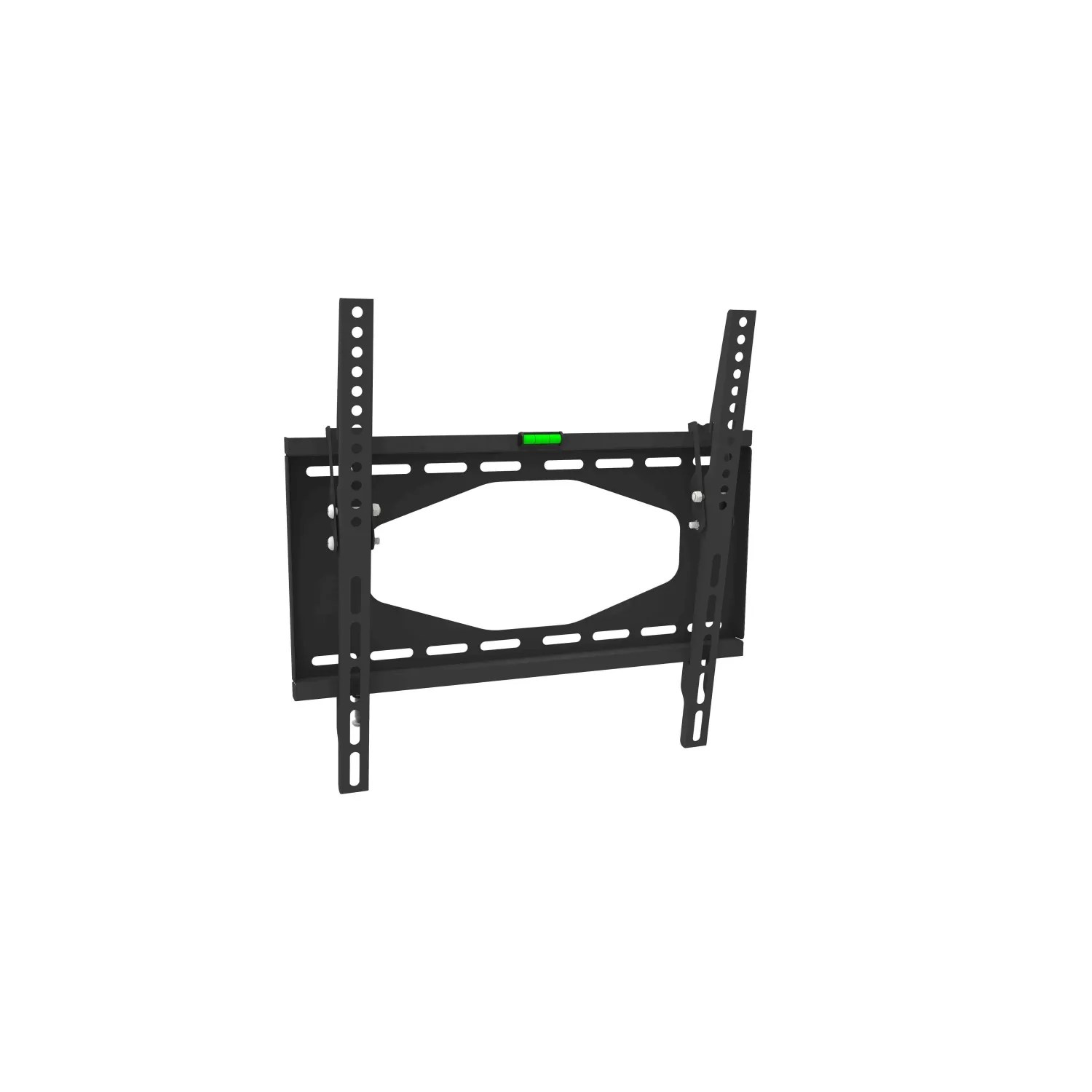

ProTech TL-227 is designed to fit most 32″-55″ LED, LCD Flat Panel TVs up to 50kgs/110lbs. A tilting mount is recommended when reflections from windows or lighting interfere with TV viewing or when multiple viewing angles are desired. The adjustable structure allows freely tilting the TV wall mounts for  15°down for viewing ease and enjoyment. Lateral shift allows the TV to move left and right on the wall plate so it’s placed exactly where you want it. Compatible with VESA hole up to 400×400. Protech TL-227 is designed for 16″ or Less  Stud spacing.



Weight 6 lbs
Dimensions 19 × 7 × 2 in
Model Number TL-227
Brand Protech
Colour Black
Materials Steel
Product Size 18.5 x 7 x 2 inches
Profile 60mm/2.3″
TV/Monitor Sizes 32 – 55″
Weight Capacity 50 KG / 110 lbs
VESA Standards 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 400mm
Motion Type Tilt
Tilt Angle -15° to +15°
16″ Stud Spacing Yes
24″ Stud Spacing No
Height of TV Bracket Arms 430 MM / 16.9 inches
Wall Plate Size(width x height) 440 x 152 MM /17.3 x 5.9 inches
Warranty 1 Year Manufacturer’s Limited Warranty
Specifications

Additional information

Weight 6 lbs
Dimensions 19 × 7 × 2 in
