Weight | 14 lbs |
---|---|
Dimensions | 27 × 13 × 3 in |
Brand | Protech |
Colour | Black |
Materials | Steel |
TV/Monitor Sizes | 37″ – 80″ |
Weight Capacity | 50 KG / 110 lbs |
VESA Standards | 200 x 200mm, 300 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 400mm |
Motion Type | Tilt |
Tilt Angle | +5°~-25° |
Warranty | 1 Year Manufacturer’s Limited Warranty |
Product Info
Description
This Protech’s heavy-duty TV Ceiling mount offers strong support for commercial mounting. Tilt ceiling plate contributes to the flexibility for applying in flat and pitched ceiling, special design also allows for single wood stud and roof beam installation. It is effortless to adjust the height by the telescopic design of the pole. The VESA plate can swivel and tilt for the optimal viewing angle. Also, the inside cable management keeps an elegant appearance.
FEATURES:

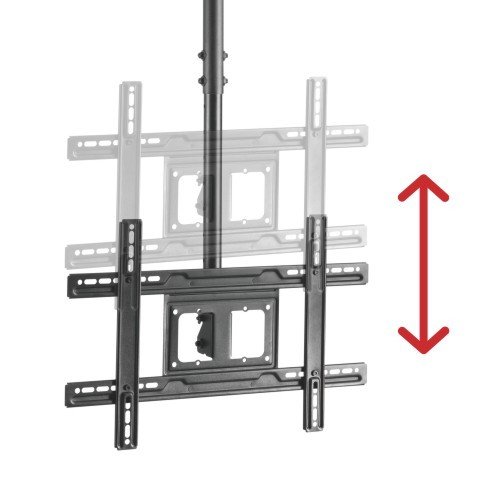

●Telescoping Height Adjustment: for the optimal viewing height
●Free-tilting & Swiveling Design: for multiple TV viewing angles
●Cable Management: keeps everything organized
●Detachable VESA Plate Design: enables easy installation

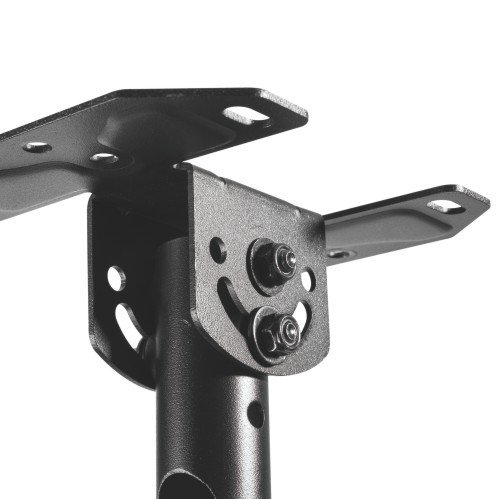

●Adjustable Ceiling Plate: for mounting in flat or sloping ceiling
SPECIFICATION:
Product Category: | TV Ceiling Mount |
Brand: | Protech |
Material: | Steel,Plastic |
Surface Finish: | Powder Coating |
Color: | Fine Texture Black |

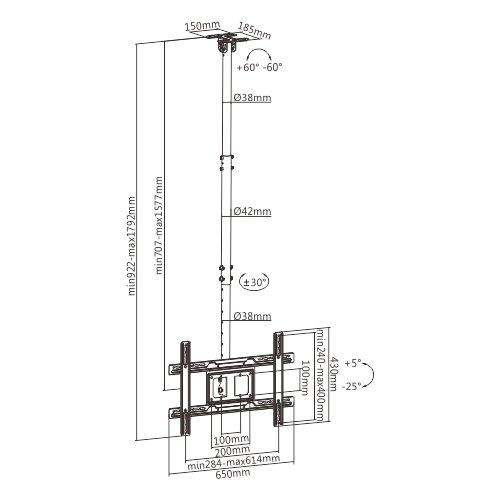

Dimensions: | 1792x650x185mm (70.6″x25.6″x7.3″) |
Fit Screen Size: | 37″-80″ |
Fit Curved TV: | No |
Mounting Hole Pattern : | VESA & Universal |
VESA Compatible: | 200×200, 300X200, 300X300, 400×200, 400X300, 400×400, 600×400 |
Max. VESA: | 614x400mm |
Weight Capacity: | 50kg (110lbs) |
Strength Tested: | 3 Times Approved |
Profile: | 707~1577mm (27.8″~62.1″) |

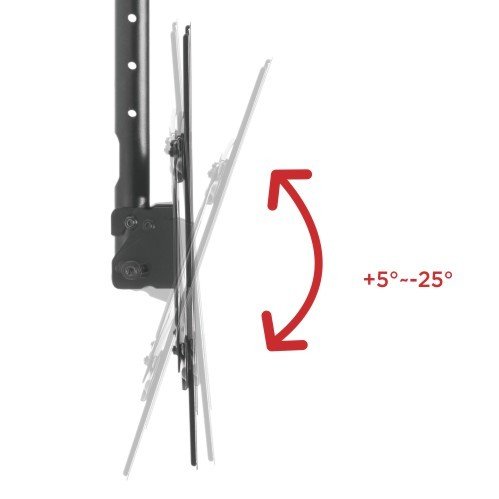

Tilt Range: | +5°~-25° |

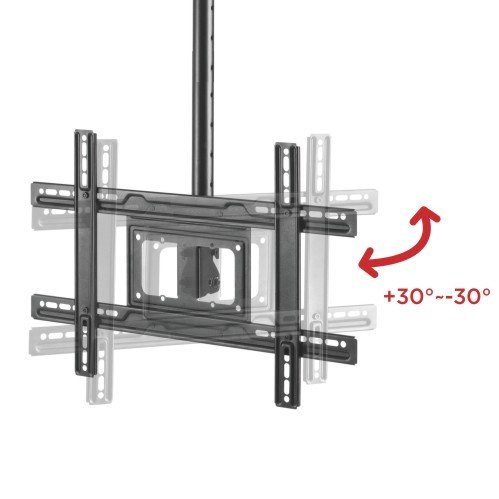

Swivel Range: | +30°~-30° |
Screen Freely Tilting: | No |
Installation: | Solid Wall,Single Stud,Ceiling Mounted |
Panel Type: | Detachable Panel |
Wall Plate Type: | Fixed Wall Plate |
AV Component Shelf: | No |
Direction Indicator: | No |
Cable Management: | Yes |
Anti-theft: | No |
Power Supply: | No |
Bubble Level: | No |
Accessory Kit Package: | Included |
Instruction Manual Included: | Yes |
