Description

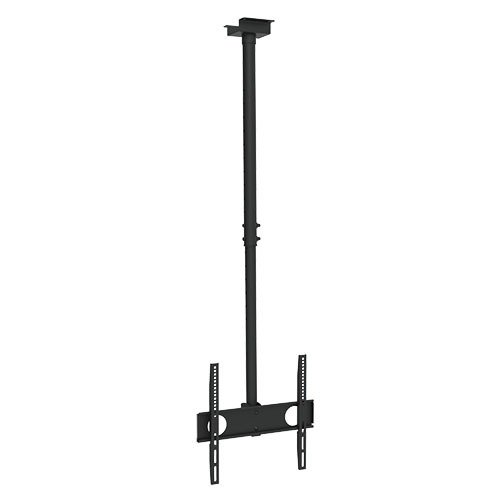

PROTECH CM-425 is a ceiling mount designed to offer the ultimate in versatility and universal compatibility. Fixed ceiling plate for flat roof/ceiling. It is the perfect solution for retail and commercial displays, offering 15°tilt down and 360°rotation around the pole. It combines advanced cable management features and ceiling mount covers to ensure an elegant and tidy look. Max. VESA 400×400 hole pattern.
FEATURES
-
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
-
●360° Rotation Around the Pole: provides optimal viewing
-
●Cable Management: keeps everything organized
-
●Height adjustable TV mount
SPECIFICATIONS
| Product Category: |
TV Ceiling Mount |
| Rank: |
Standard |
| Material: |
Steel |
| Surface Finish: |
Powder Coating |
| Color: |
Fine Texture Black |

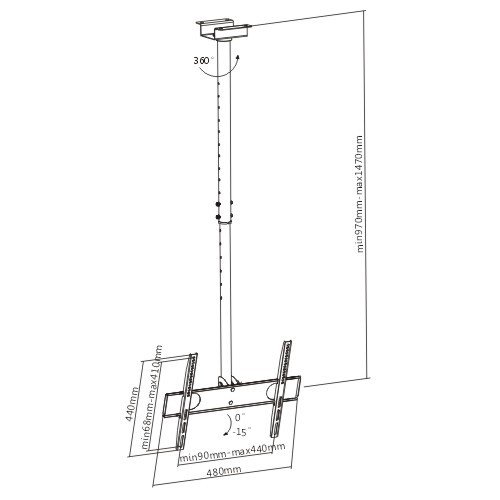

| Dimensions: |
180x480x1675mm (7.1″x18.9″x65.9″) |
| Fit Screen Size: |
32″-55″ |
| Fit Curved TV: |
Yes |
| Mounting Hole Pattern: |
VESA & Universal |
| VESA Compatible: |
200×200,400×200,300×300,400×400 |
| Max. Mounting Hole: |
400×400 |
| Weight Capacity: |
50kg (110lbs) |
| Strength Tested: |
3 Times Approved |
| Profile: |
970~1470mm (38.2″~57.9″) |
| Tilt Range: |
0~-15° |
| Installation: |
Ceiling Mounted |
| Panel Type: |
Detachable Panel |
| Wall Plate Type: |
Fixed Wall Plate |
| Cable Management: |
Yes |
| Bubble Level: |
No |
