Product Info
Description

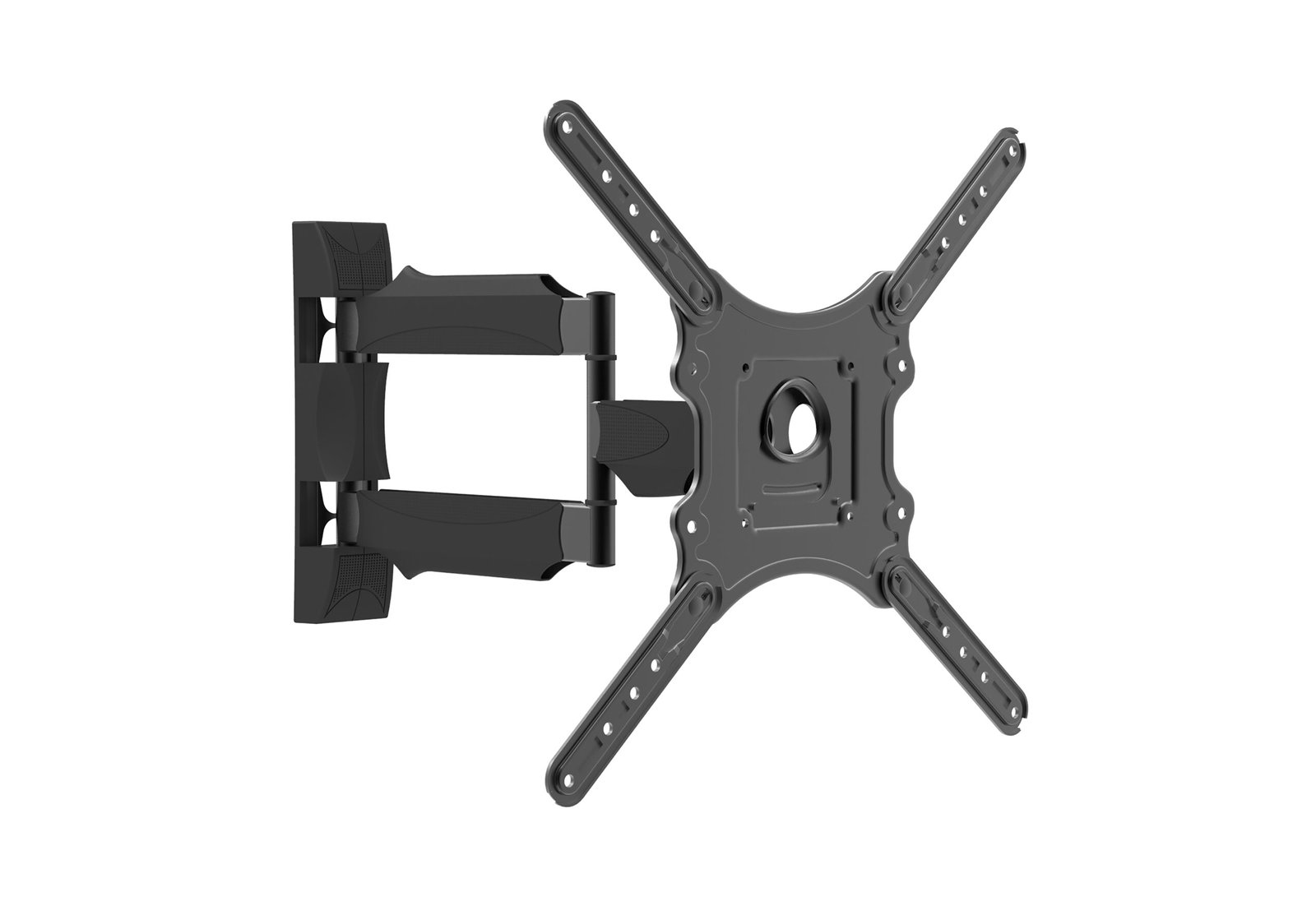

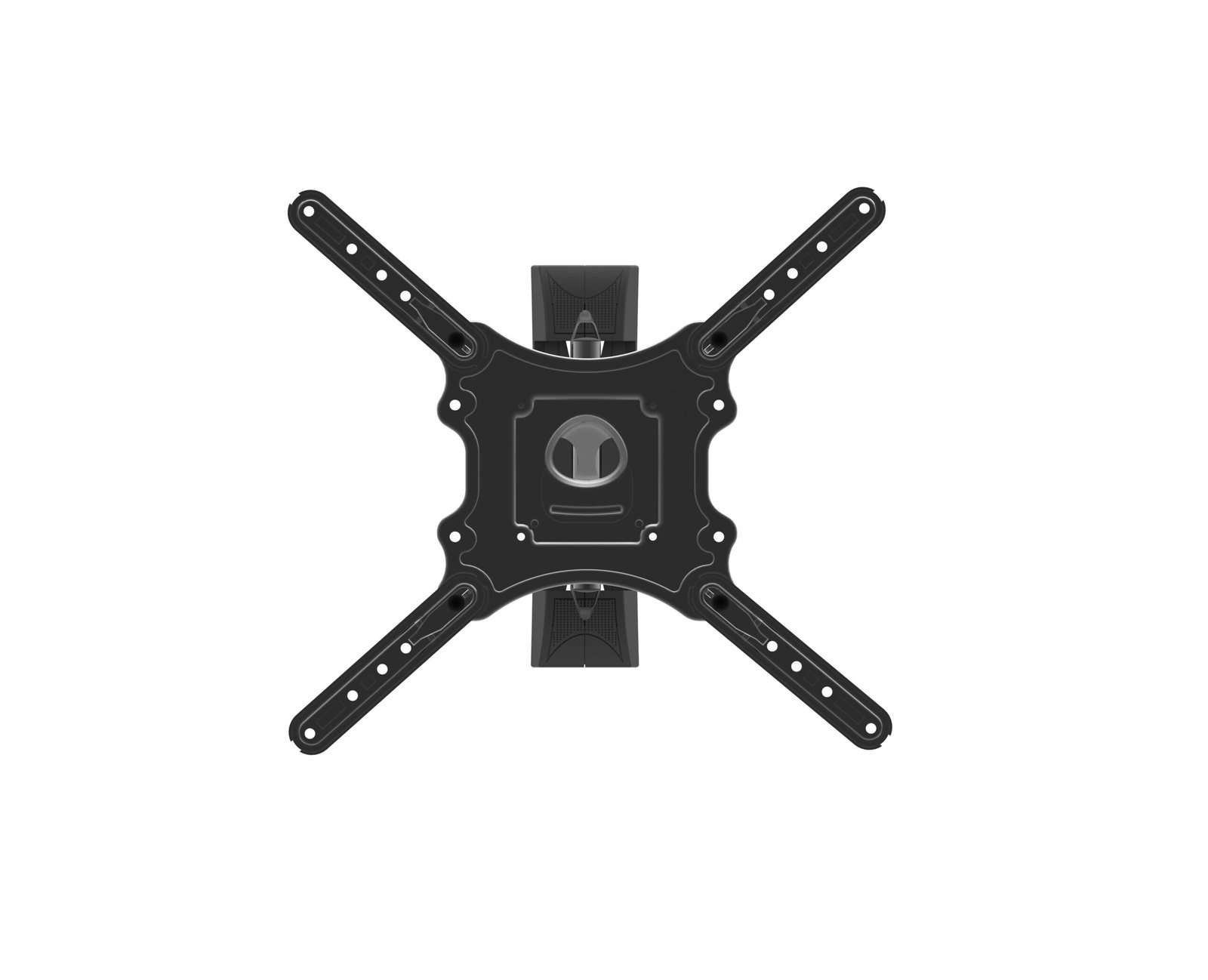

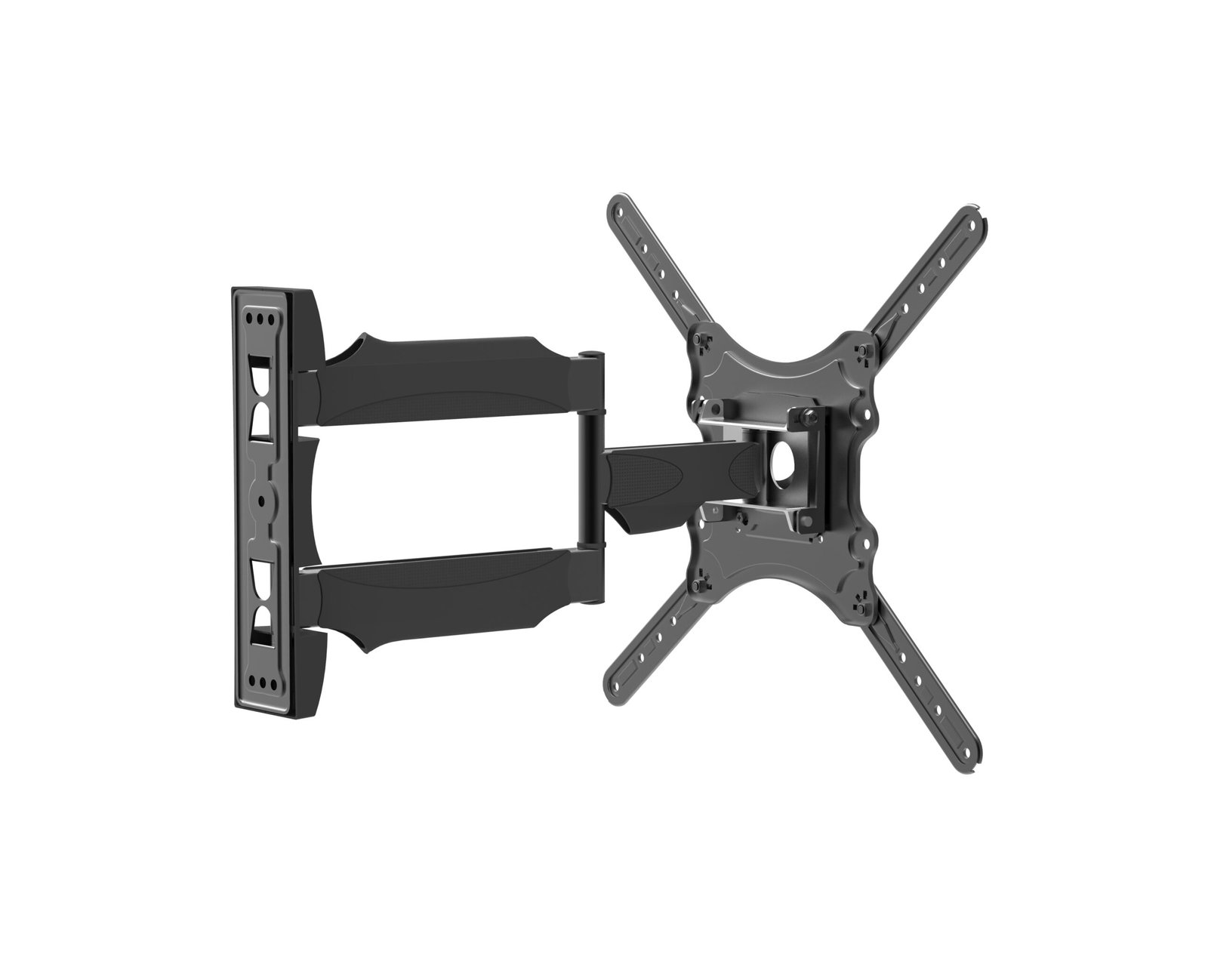

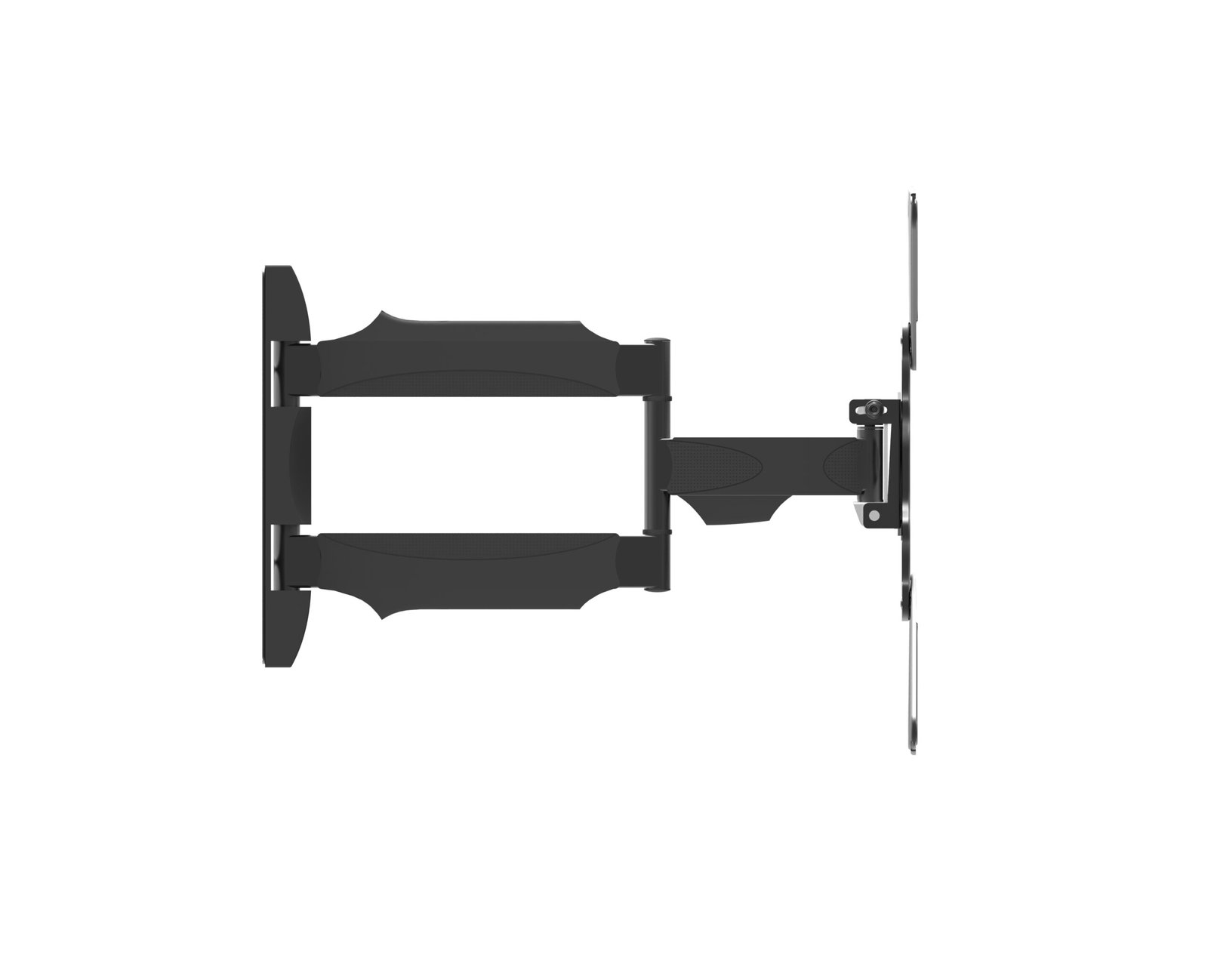

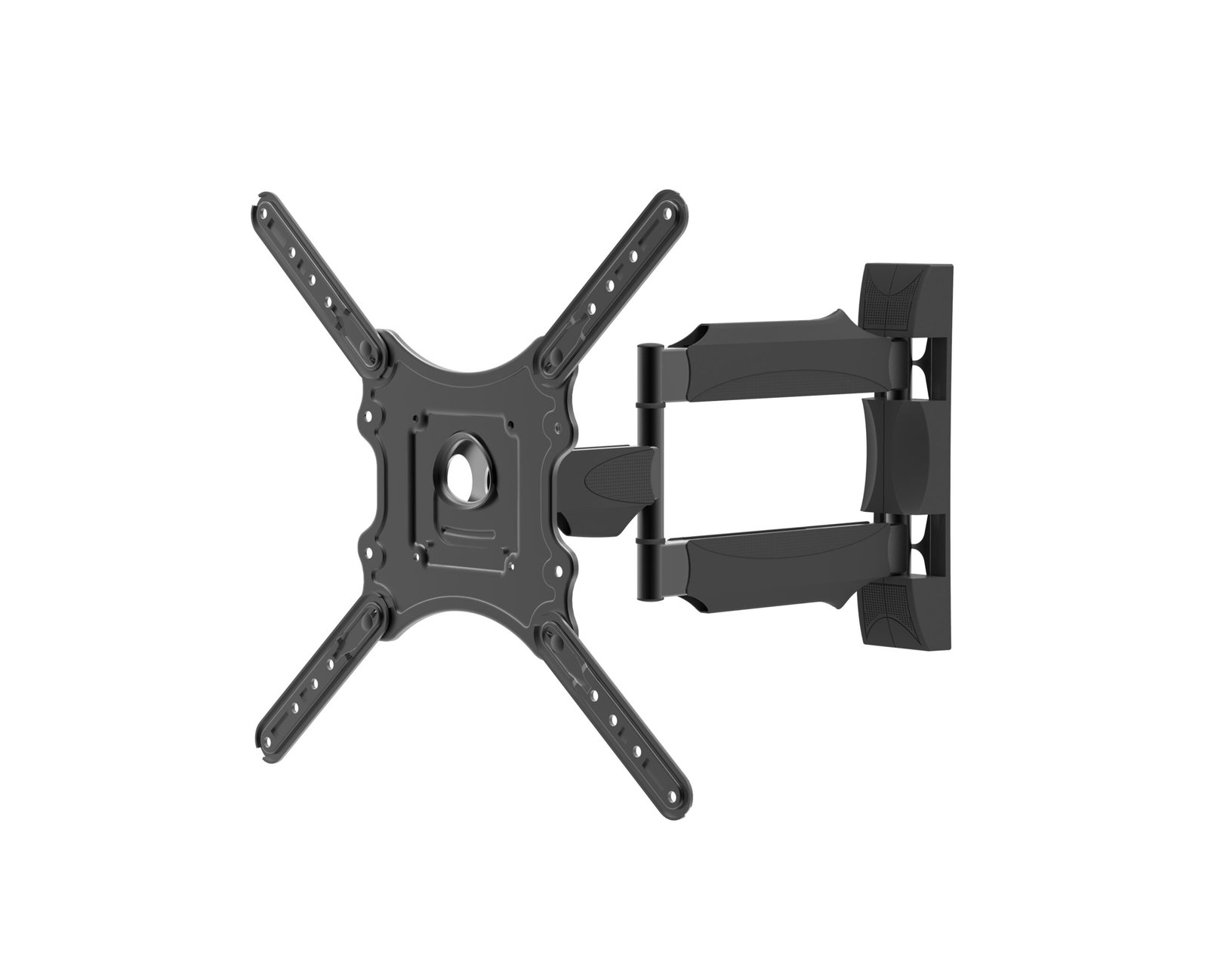

This popular TV mount model is designed to fit any 23- 55″ Flat Panel TV up to 35kgs/77lbs. It has a simple and reliable construction and hides cables inside the arm for a clean look. The adjustable swivel arm and tilt plate provides maximum viewing flexibility.
Includes wall mounting hardware and assembly instructions.
| Weight | 9 lbs |
|---|---|
| Dimensions | 16 × 13 × 3 in |
| Brand | Protech |
| Colour | Black |
| Materials | Plastic, Steel |
| Surface Finish | Powder Coating |
| Product Size | 614 x 43 5x 435mm (24.2 x 17.1 x 17.1″) in open position |
| TV/Monitor Sizes | 23 – 55″ |
| Installation | Single Stud, Solid Wall |
| Weight Capacity | 35 KG / 77 lbs |
| VESA Standards | 100 x 100mm, 100 x 150mm, 200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 300mm, 400 x 400mm |
| Motion Type | Full Motion |
| Tilt Angle | ＋5° to -8° |
| Swivel Angle | +90° to -90° |
| Level Adjustment | +5° to -5° |
| Profile | 58 – 614mm (2.3 – 24.2″) |
| Freely Height Adjustable | No |
| Warranty | 1 Year Manufacturer’s Limited Warranty |
Specifications
Additional information
| Weight | 9 lbs |
|---|---|
| Dimensions | 16 × 13 × 3 in |
