Description

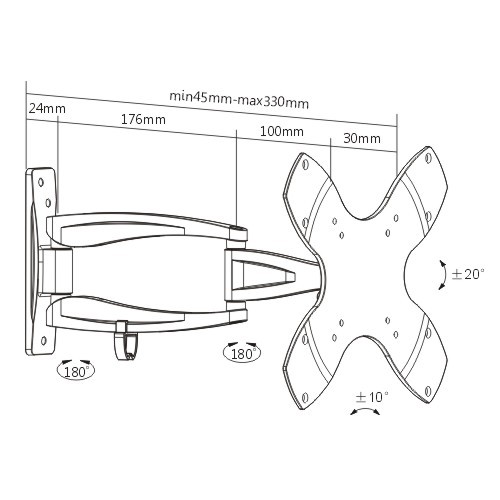

The FL-520 articulating wall mount support 23”-42” flat-panel TVs up to 20kgs/44lbs. It places TV 45mm from wall when retracted and the arm can be stretched up to 330mm for maximum flexibility-allows effortless tilting and swiveling with the push of a finger, making it easy to reduce glare and find the perfect TV angle at any height. Its post-installation leveling adjustment ensures the TV is perfectly positioned on the wall. VESA-compatible fits 75 x 75, 100 x 100, 200×100 and 200×200 hole patterns.
FEATURES
-
●Easy Assembly: Installation is as easy as 1-2-3
-
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
-
●Leveling adjustments: allow TV to be perfectly positioned after hanging
-
●Lightweight Aluminum Construction: provides a sleek, lighter, and elegant look
-
●Cable Management: keeps everything organized
| Weight |
4 lbs |
| Dimensions |
11 × 11 × 13 in |
| Product Category: |
Full-motion TV Wall Mount |
| Rank: |
Standard |
| Material: |
Aluminum |
| Surface Finish: |
Powder Coating |
| Color: |
Fine Texture Black |
| Dimensions: |
260x260x330mm (10.2″x10.2″x13″) |
| Fit Screen Size: |
23″-42″ |
| Fit Curved TV: |
Yes |
| Mounting Hole Pattern: |
VESA Only |
| VESA Compatible: |
75×75,100×100,200×100,200×200 |
| Max. Mounting Hole: |
200×200 |
| Weight Capacity: |
20kg (44lbs) |
| Strength Tested: |
4 Times Approved |
| Profile: |
45~330mm (1.8″~13″) |
| Tilt Range: |
+20°~-20° |
| Swivel Range: |
180° |
| Screen Level: |
+10°~-10° |
| Screen Freely Tilting: |
No |
| Installation: |
Solid Wall,Single Stud |
| Panel Type: |
Detachable Panel |
| Wall Plate Type: |
Fixed Wall Plate |
| Cable Management: |
Yes |
| Anti-theft: |
No |
| Bubble Level: |
No |
| Certification: |
UL |
