Description

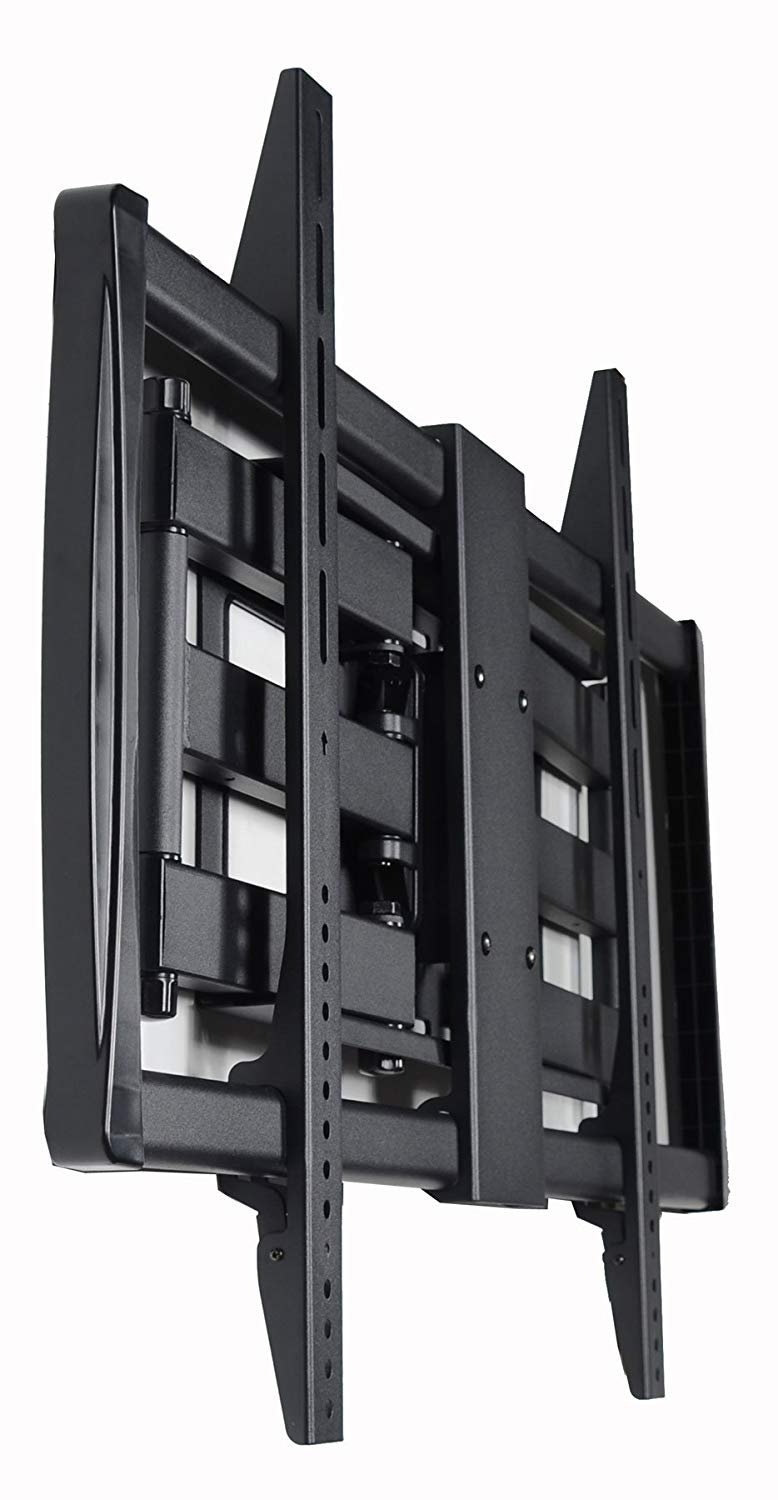

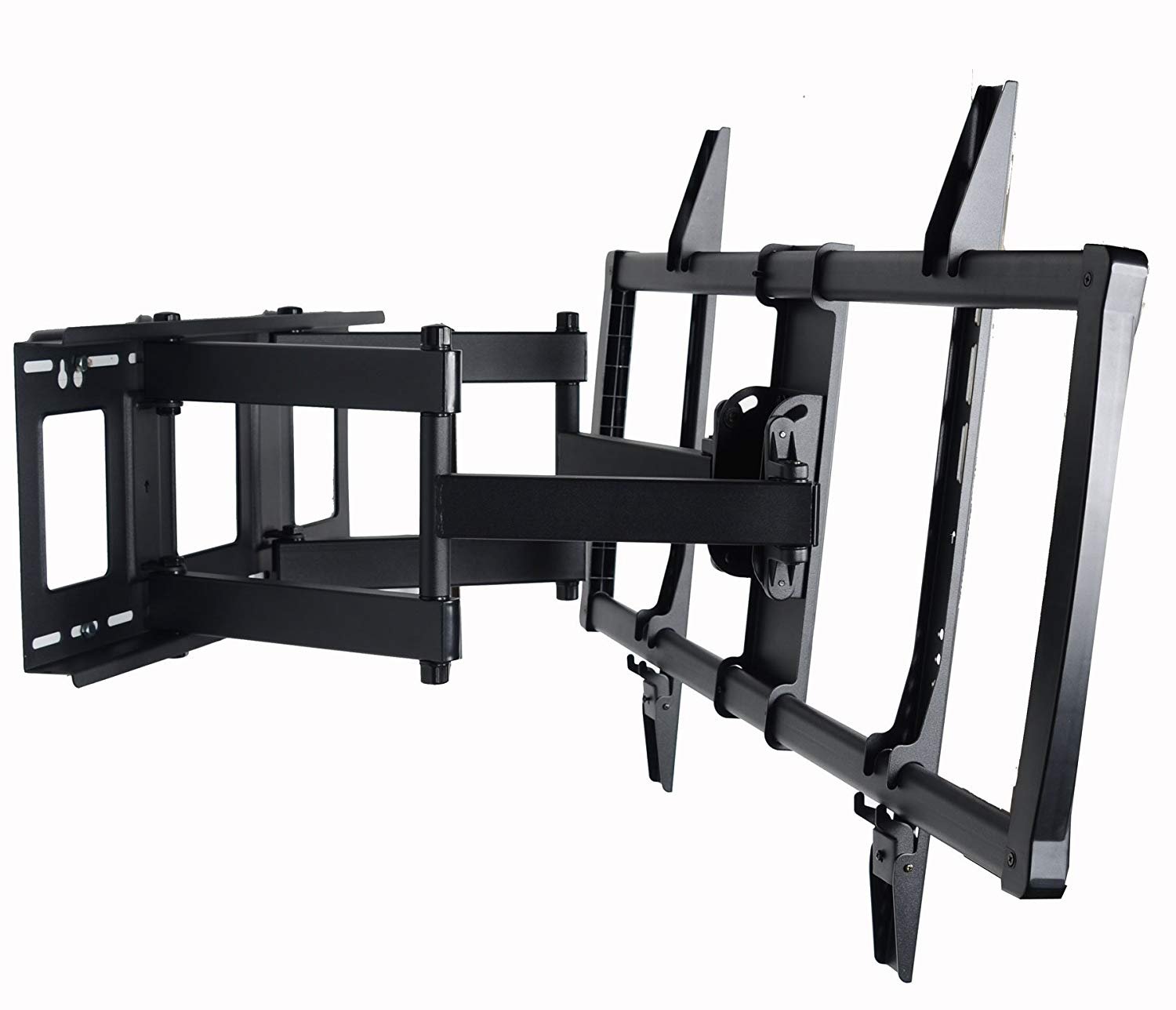

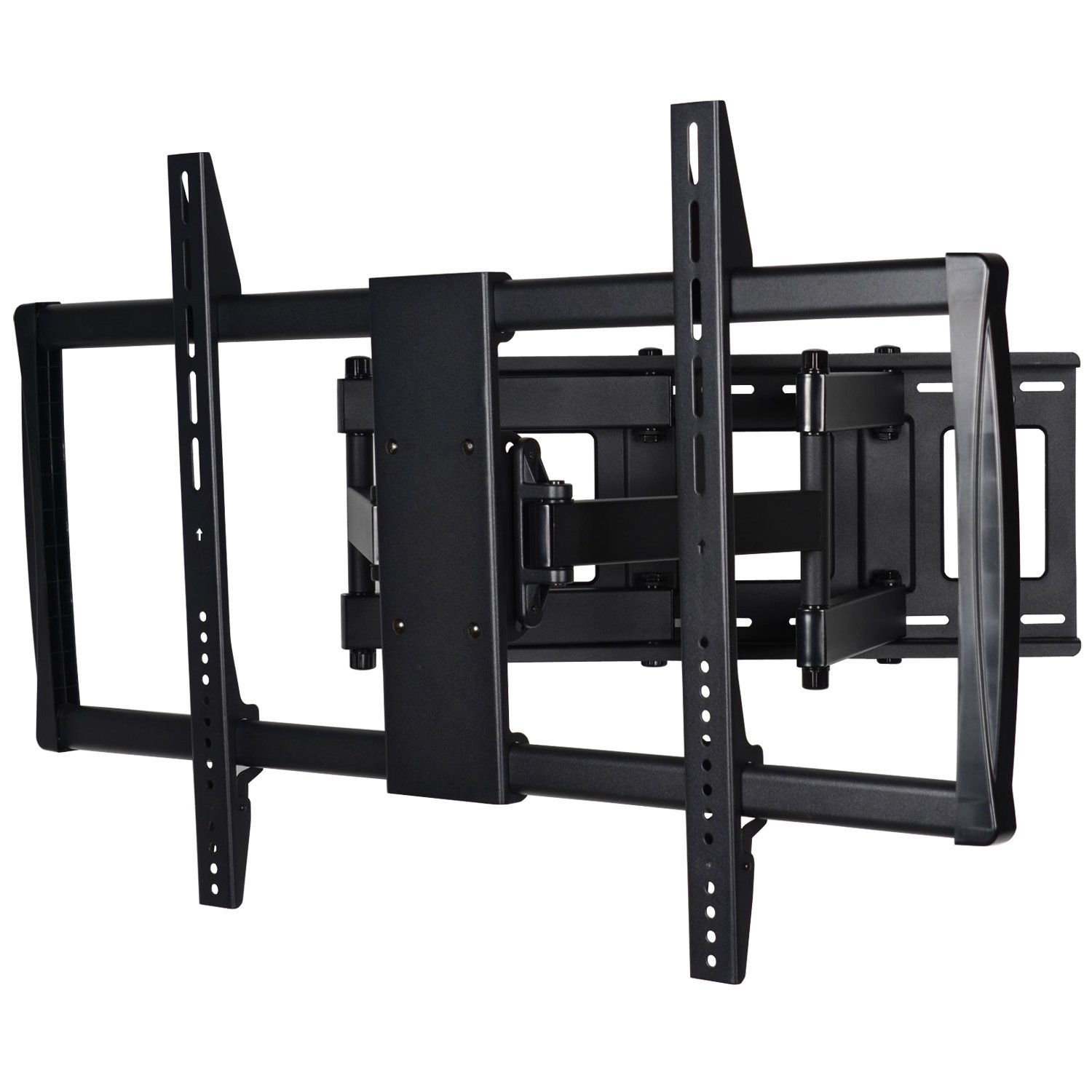

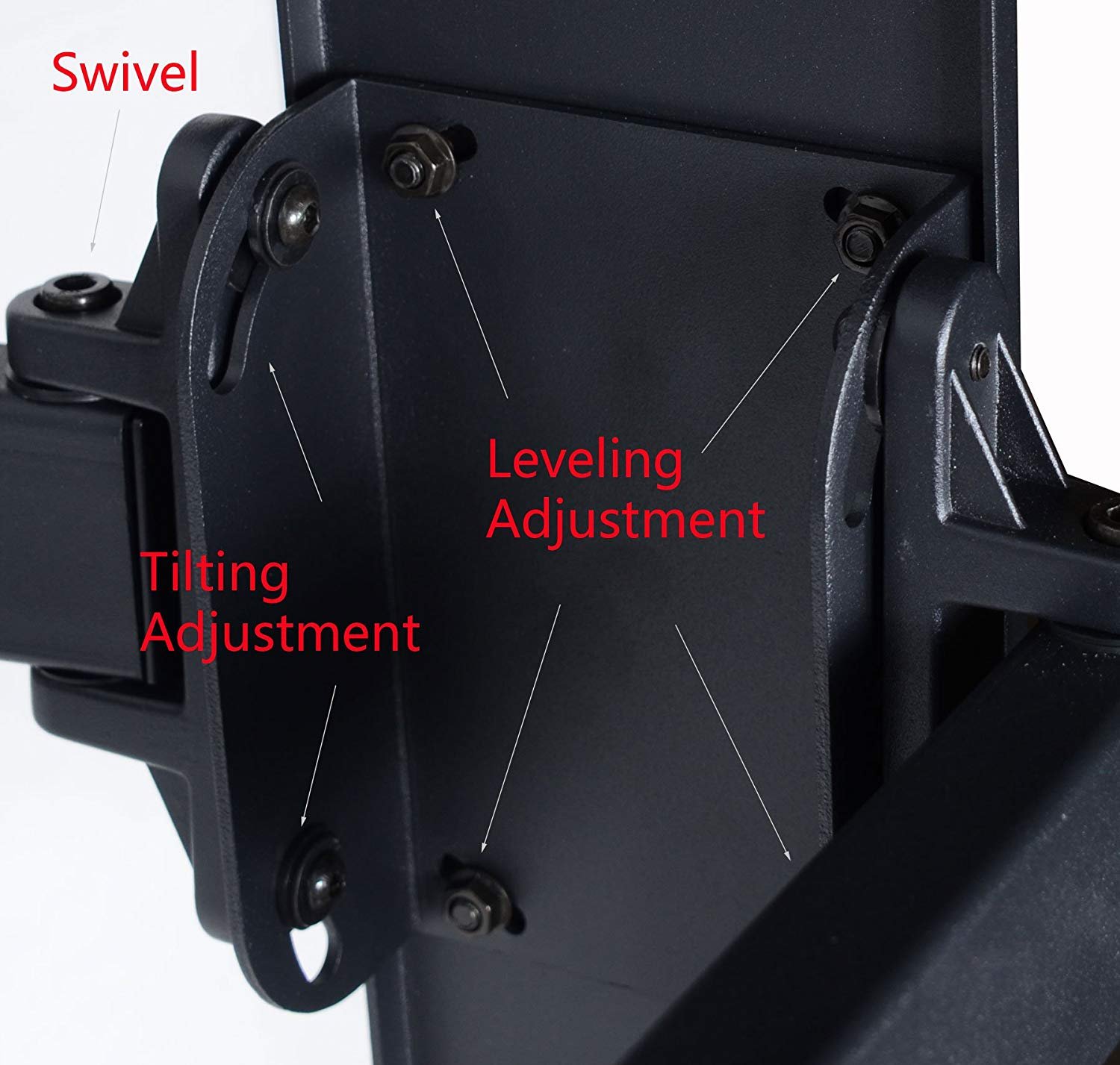

Our popular model FL-540 is a full-motion designed to fit any 60″-100″ curved & flat panel TVs up to 80kgs/176lbs. Strength has been tested for a minimum of four times its stated load capacity. Full motion allows maximum flexibility — tilts and swivel your larger TV for easy viewing from any seat in a room. Post-installation level adjustment allows the TV to “roll” up to 3 clockwise and counterclockwise to ensure it is perfectly level.

Features

• Product Category:	Full-motion TV Wall Mount
  Brand:	Protech
  Material:	Steel,Aluminum,Plastic

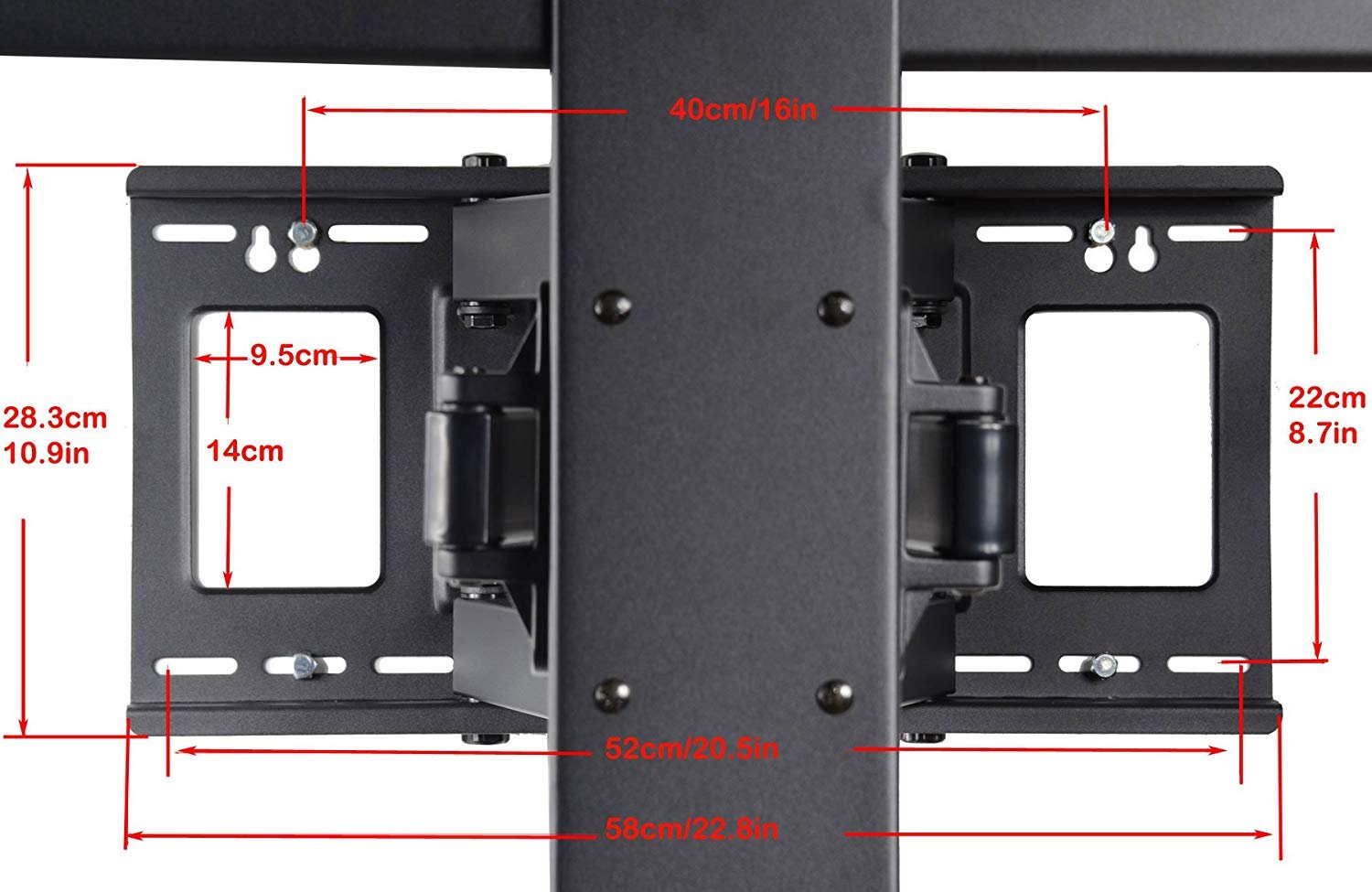

  Metal Sheet Thickness:	Wall Plate THK=2.5mm cold-rolled sheet (Wall Plate THK=0.098″ cold-rolled sheet)
  Pipe Size:	25x50mm (0.98″x2″)
  Surface Finish:	Powder Coating
  Color:	Fine Texture Black

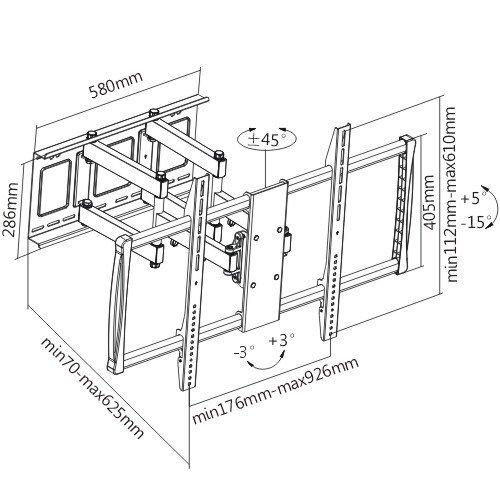

  Dimensions:	625x1050x630mm (24.6″x41.3″x24.8″)
  Fit Screen Size:	60″-100″
  Fit Curved TV:	Yes
  Mounting Hole Pattern :	VESA & Universal
  VESA Compatible:	200×200,300×300,400×200,400×400,600×400,800×400,800×600,900×600
  Max. VESA:	926x610mm
  Weight Capacity:	80kg (176lbs)
  Strength Tested:	4 Times Approved

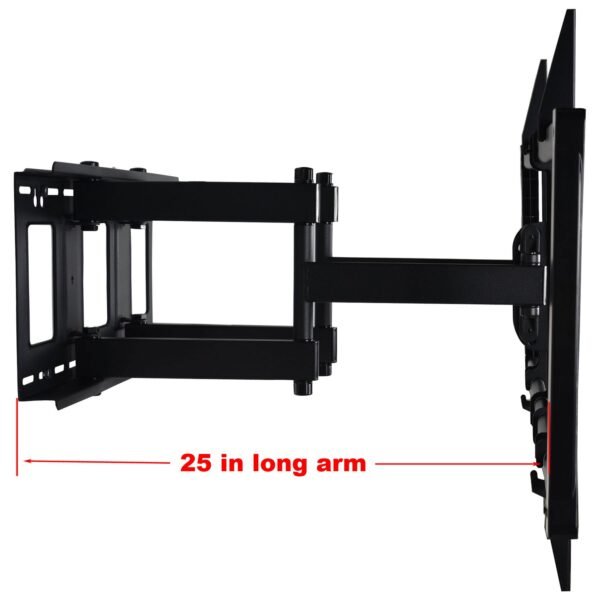

  Profile:	70~625mm (2.8″~24.6″)
  Tilt Range:	+5°~-15°
  Swivel Range:	+45°~-45°

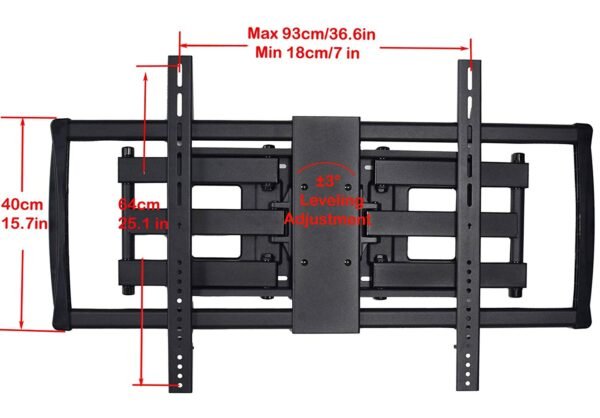

  Screen Level:	+3°~-3°
  Screen Freely Tilting:	Yes
  Installation:	Double Stud(406mm/450mm),Solid Wall
  Panel Type:	Detachable Panel
  Wall Plate Type:	Fixed Wall Plate
  Cable Management:	Yes
  Anti-theft:	No
  Bubble Level:	No
  Accessory Kit Package:	Compartment Polybag
  Instruction Manual Included:	Yes

  Includes

• Wall Mounting Hardware: Yes
• Assembly Instructions: Yes
• 1 Year manufacturer’s warranty covers materials and workmanship against manufacturing defects during the course of normal usage
