  3. ProTech TL-225 Heavy Duty Tilting Wall Mount for 37 -82″ TVs

CAD 49.99 HST

SKU: TL-225 Category: Tag:
Product Info

Description

ProTech TL-225 is design to fit most 37″-70″ LED, LCD Flat Panel TVs up to 60kgs/132lbs. A tilting mount is recommended when reflections from windows or lighting interfere with TV viewing or when multiple viewing angles are desired. Adjustable TV Wall Mount structure allows freely tilting for 15°up and 15°down for viewing ease and enjoyment. Lateral shift allows the TV to move left and right on the wall plate so it’s placed exactly where you want it. Compatible with VESA hole up to 600×400. Protech TL-226 is specially design to fit on 16″ and 24″ Studs Spacing for Easier Installation.

Weight 8 lbs
Dimensions 31 × 9 × 2 in
Model Number TL-225
Brand Protech
Colour Black
Materials Steel
Product Size 31×8.5×2 inches
Profile 65mm/2.5″
TV/Monitor Sizes 37″-82″
Weight Capacity 60 KG / 132 lbs
VESA Standards 100 x 100mm, 200 x 100mm, 200 x 200mm, 300 x 200mm, 300 x 300mm, 400 x 200mm, 400 x 400mm, 600 x 200mm, 600 x 300mm, 600 x 400mm
Motion Type Tilt
Tilt Angle -15° to +15°
16″ Stud Spacing Yes
24″ Stud Spacing Yes

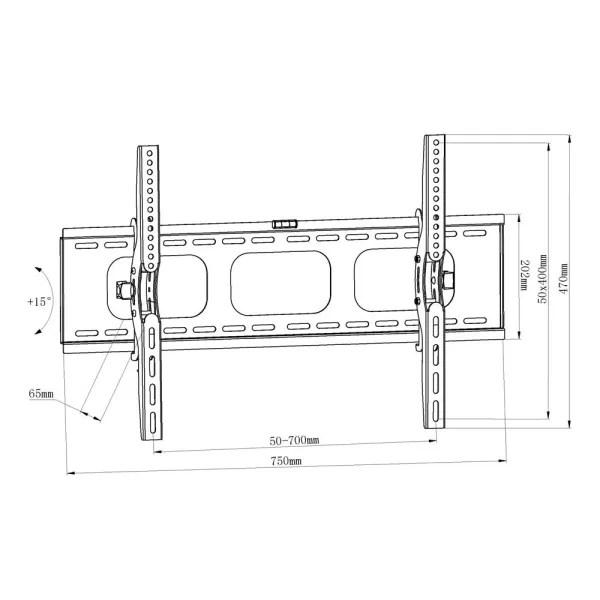

Height of TV Bracket Arms 470 MM / 18.5 inches
Wall Plate Size(width x height) 750 x 202 MM /29.5 x 7.9 inches
Warranty 1 Year Manufacturer’s Limited Warranty
Specifications

Additional information

Weight 8 lbs
Dimensions 31 × 9 × 2 in
